Portuguese manufacturer NEXT Audiogroup designed the new MOKA system as an ultra-compact plug-and-play line array system for use in flexible, high-power modular configurations in a variety of applications.

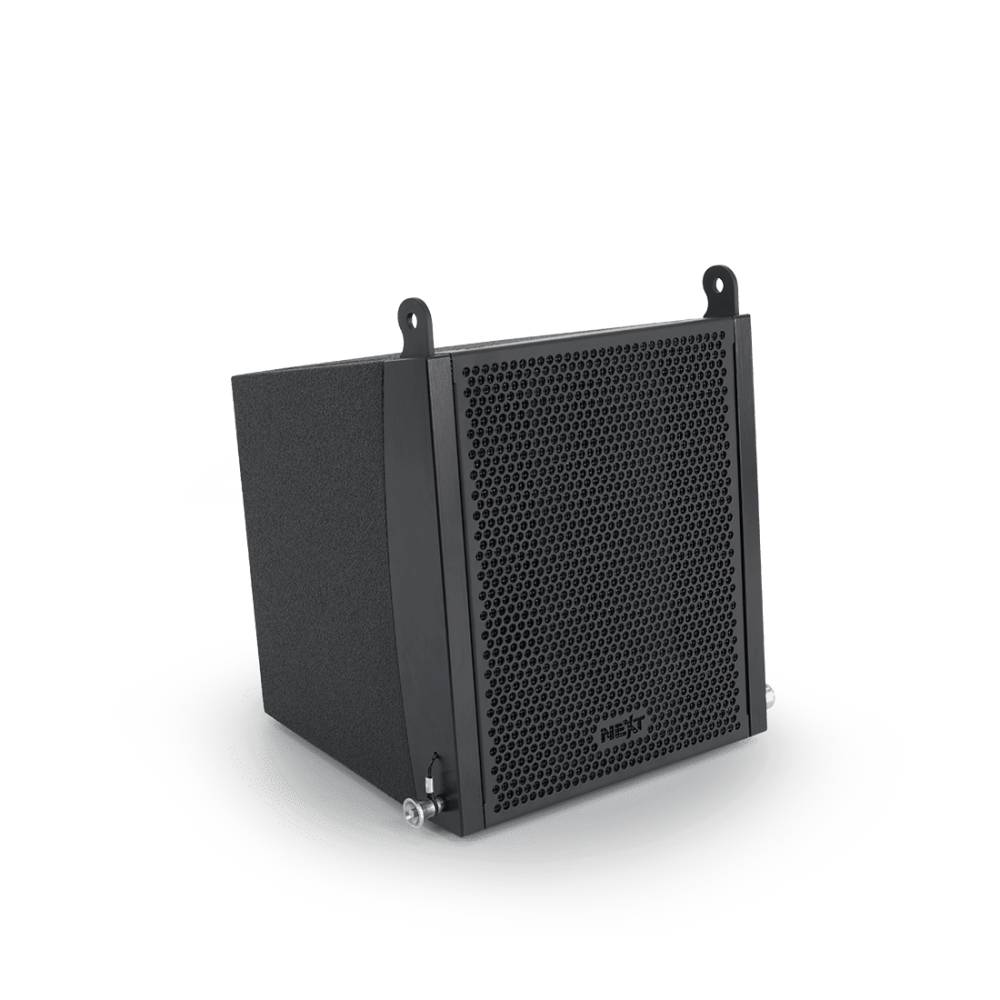

MOKA integrates the latest concepts in sound technology into one system consisting of three basic elements: MOKA Array, MOKA Sub and MOKA SubA. Its capabilities cover both small and large events, up to line array systems for professional live sound reinforcement at concerts or festivals, along with adaptable subwoofers on the ground or to be mounted into a system if necessary.In addition to system flexibility, MOKA offers advanced features and technologies designed to streamline the lives of any installer, rental company or team. The MOKA Array loudspeaker, enclosed in a multi-layer polyurea-painted birch plywood housing, serves as a line array element. It houses a 9-inch neodymium woofer with a 3-inch neodymium driver mounted coaxially. The waveguide ensures minimal interference between systems, creating a classic linear dispersion pattern.
Four different configurations are available:
MOKA Small
(four Moka modules + one Moka Sub + one Moka Sub A),
MOKA Medium
(eight Moka Array + two Moka Sub + two Moka Sub As),
MOKA Large
(16 Moka Array + four Moka Sub As) + four Moka Sub As)
MOKA Giant
(24 Moka boards + six Moka Sub As) and six Moka Sub As).
Unique advantages:
Easy installation
Installation is easy and does not require high technical skills or special tools to install the device
. Light set
The lightweight design increases portability in audio systems, ensuring easy setup and transportationwithout sacrificing high-quality sound.
Exceptional resistance
The loudspeaker is covered with a thick layer of polyurea, a highly resistant two-component polymer, which makes it highly resistant toimpacts and scratches.
Strong casing
The housing is constructed of plywood, which is an excellent material in terms of strength and durability, ensuring a long life for the speaker.
Modular System
The modular design allows for scalable and customizable sound amplification. Perfect for delivering high-quality sound in a variety of locations, these systems offer flexibility without compromising performance
16 Ohms
16 ohm speakers have the advantage of increasing performance and compatibility in audio setups. Experience clearer sound and versatile setup benefits
Technical Specifications
Product type:Ultra-compact linear element
Frequency response (-6 dB): 100 Hz - 19 kHz
Nominal range (-6dB): 100° H x 10° V
Nominal impedance LF: 16Ω
Nominal impedance HF: 16Ω
Dedicated presets using MOKA SUB A
LF sensitivity (1W, 1m): 96dB
HF sensitivity (1W, 1m): 108dB
LF Maximum SPL (calculated): 122.5 dB
HF Maximum SPL (calculated): 127.5 dB
Low Frequency Speaker: 9-inch neodymium woofer – coaxial | 3 inch voice coil
High frequency speaker: 3-inch neodymium driver - coaxial
Low frequency power: 450W
High frequency power: 90W
Input connectors: 2 x Neutrik NL4
Recommended subwoofer
Armature: 3-point adjustable mounting system (from 0° to 10° in 2° steps)
Handles: One on the back
Grating: Black perforated steel
Housing and workmanship: Multi-layer birch plywood
